Please note: Sometimes before performing the OBDII relearn the ECU may need to be unlocked in order for the OBDII procedure to be successful. This procedure can be carried out with most Hamaton/ATEQ Diagnostic tools. Aftermarket sensors are known to not show pressure by location on this vehicle.
Vehicle TPMS Information
| Make: | Lexus |
|---|---|
| Model: | LS |
| Model Code: | XF40 |
| Date of Manufacture: | May 2012 - September 2017 |
| OE Sensor Manufacturer: | PACIFIC |
| OE Sensor Number: | 4260742031 |

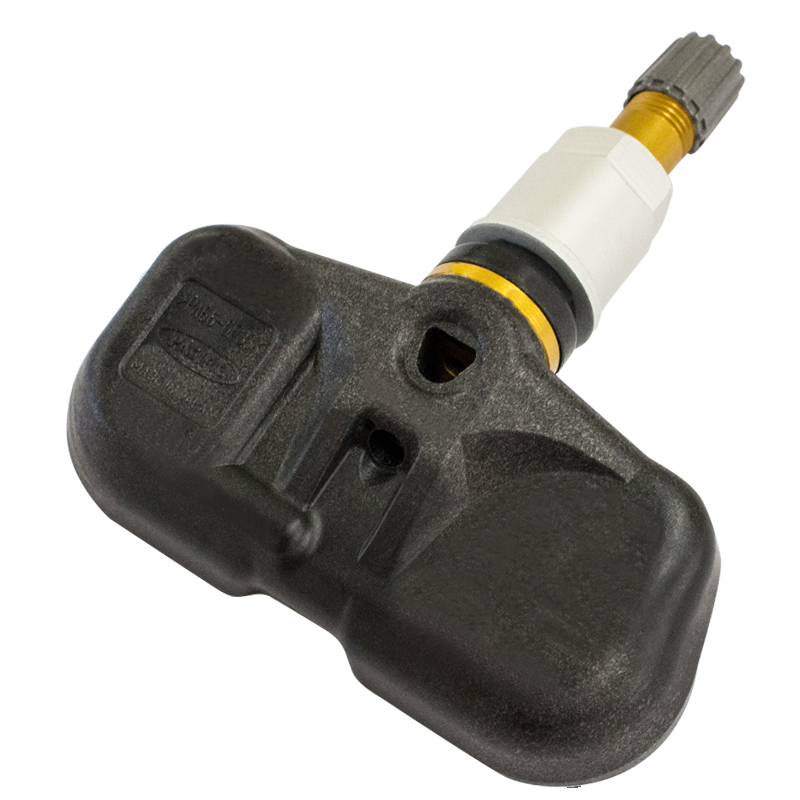

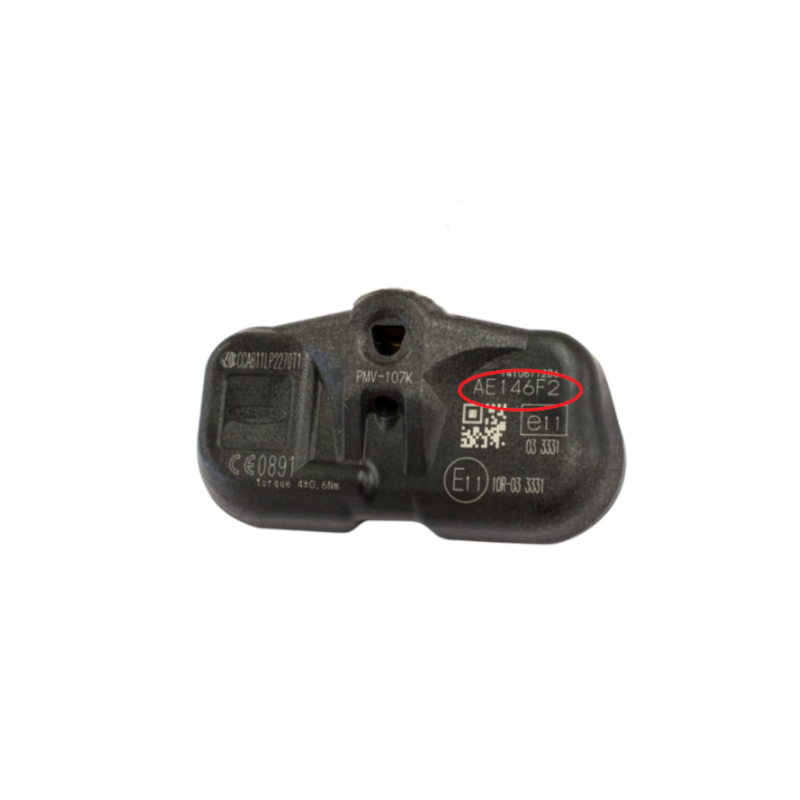

| OE Sensor ID Location: | Pacific CCT1 Clamp-In Sensor (Click to View) |
The following sensors are all compatible with: Lexus LS 2012-2017.
Direct Replacement Sensors
REMA TIP TOP UK Configurable and Programmable Sensors
HTS-A68BM
EU-Pro Hybrid 3.5 3200 Silver Clamp-In Sensor
Configurable & Programmable Universal Sensors Configurable: configure in 1-3 seconds, as protocols covering a high percentage of ... (more)
Barcode: 6924478954556
Comparative Part Numbers: 72-21-945,
HTS-A68BA
EU-Pro Hybrid 3.5 3200 Snap-In Sensor
Configurable & Programmable Universal Sensors Configurable: configure in 1-3 seconds, as protocols covering a high percentage of ... (more)
Barcode: 6924478954549
Comparative Part Numbers: 72-21-946,
HTS-A68BN
EU-Pro Hybrid 3.5 3200 Black Clamp-In Sensor
Configurable & Programmable Universal Sensors Configurable: configure in 1-3 seconds, as protocols covering a high percentage of ... (more)
Barcode: 6924478954563
Comparative Part Numbers: 72-21-947,
Other Compatible Sensors
SCH-S164
Schrader Delta EZ 2.0 Clamp-In Sensor - EU 433Mhz
Schrader programmable EZ-Sensor 2.0 433Mhz EU. Requires a TPMS diagnostic tool to program the sensor for a particular vehicle.... (more)
Barcode: 5055563005523
Comparative Part Numbers: 72-20-845, 2200,
Service parts for the Pacific CCT1 Clamp-In style sensor:
HAM-K017_10
Box Of 10 Service Kits for Pacific LFB1 / LFC1
A box of 10 service kits, with each including: 1 Nut, 1 Rubber Grommet, 1 Plastic Washer, 1 Valve Cap and 1 Valve Core. This ser... (more)
Barcode: 6924478969161
Comparative Part Numbers: 6-116T, 72-20-525, 21030, 20031, 1110K, 5628533, 591307, 92-0135,
You must be logged in to view relearn procedures.
Every effort is made to ensure that this page is as accurate as possible, however the information cannot be guaranteed.
